Describe: A2CH1 F8 A2CH1 T8 A2CH2 F12 A2CH2 T12 A2CH3 F16 A2CH3 T16 A2SY1 F8
A2SY1 T8 A2SY2 F12 A2SY2 T12 A2SY3 F16 A2SY3 T16
Applications: Transfer of solvents used in the ultrapure acid and semiconductor industries • Transfer of abrasive slurry • circulation, dispensing and filtration to control flow and capacity • Delivery of bulk chemicals.

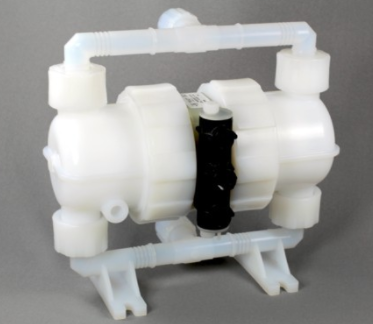

Furon A2 Pumps are pneumatically-operated, driven by two reciprocating PTFE
bellows. Their oscillation frequency is much lower than an equivalent diaphragm
pump, resulting in an extended life and reduced cost of ownership.
All Furon A2 Pump wetted components are manufactured from high purity PTFE and
PFA, making the pumps suitable for handling even the most aggressive concentrated
chemicals. All other (non-wetted) components are manufactured from advanced
engineering thermoplastics such as ETFE and PEEK to ensure no possibility of ionic
contamination, even in the event of a bellows failure. Furon A2 Pumps are also 100%
elastomer free, using our highly reliable No O-Ring sealing technology throughout.
This substantially reduces the chance of contamination due to a failed O-Ring as well
as reduces the maintenance costs.
Our pumps are self-priming, providing an easy installation and setup. In addition, the
Furon A2 Pumps feature our innovative shuttle valve fixation technology, allowing
us to provide three different driving systems to adapt our pumps to the customer’s
requirements
